SOLID
NO FLEX CLAMP
Features and Benefits
Suits underwater photography & video; also scientifc equipment
Quick release mounting for easy attachment/removal from equipment
Solid clamping with no flexing: Heavy duty precision machined metal clamp plates and ball joints
Durable & long lasting marine grade anodized aluminium construction
Universal mounting adaptors for all equipment
Available in lengths of 300 to 600mm in 50mm increments. Longer lengths to order
Triple segment arms available by using double ball tubes
Available with either mounting post or M8 threaded mount: suits DVL80/100 or M250 units; also other manufacturer's equipment
Unique design of arms and balls: no screws/pins to wear loose

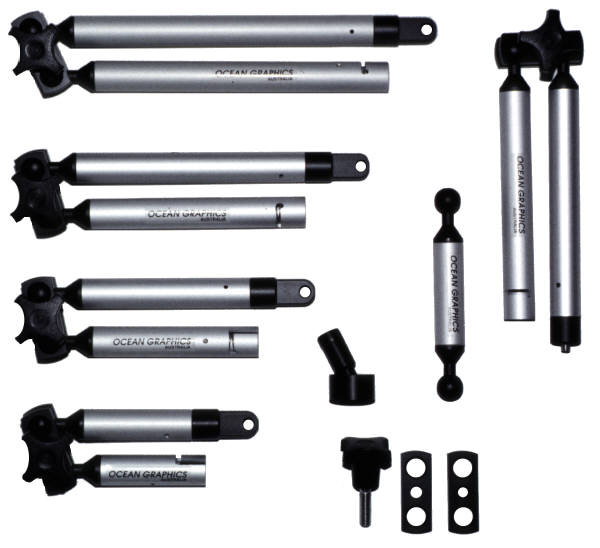

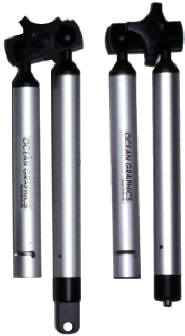

Double ball arm segment
MA-AMP Universal mount
(Quick disconnect)
Easy grip knobs
M250 mount (M8 thread)
DVL 80/100 light mount
Product Specifications GA-ARMS
</DI
Lengths 300mm to 600mm in steps of 50 mm (Optional longer lengths to order)
Materials Marine grade aluminium, stainless steel, & Cycolac
Mounting MA-AMP universal mount: 2 x 1/4" UNC
(or 6mm) S/S screws at 1.1/8" (28.6mm)
spacing. (Custom arm mounts made to
specification)
Options Custom lengths, triple segments (utilising
double ball arm segments), etc...
