Features and Benefits
Brilliant 50 watt output turns night into day
Sliding switch Lite head for ease of use & one handed operation when using reels, cameras, catch bags etc...
Maintenance free magnetic switch uses no o-rings
Most cost efficient underwater lighting system available
Simple & rugged battery pack for quick battery changes and easy maintenance
Standard beam angle of 12 deg. suits most diving styles (50 watt IRC = 1200 lumens!)
Reveals colours during day dives
Uses widely available halogen dichroic globe/reflectors: available in 20, 35, 50, & 75 watts, and angles 12 deg., 24 deg., & 36 deg.. (Also available 50 watts 60 deg: ideal for video)
Rechargeable sealed lead acid gel batteries are simple and economical to use, and spare sets can be kept on hand for repetitive dives
Gold plated connector pins and sockets for long electrical connector life
70m standard depth rating
High efficiency economical QH dichroic globe/reflectors
One handed
operation by
maintenance free magnetic switch

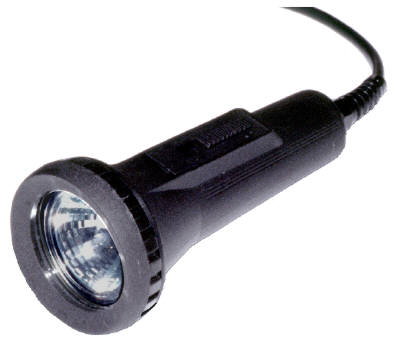

Lite head is compact, corrosion free and lightweight
Easy globe changes with twist of ring
Product Specifications M525L
Batteries
Weight
Duration
Recharge time
Warranty
12v 8ah sealed lead acid gel
Battery pack 4.7kg
Lite head 0.33kg
Charger 0.5kg
90 mins @ 50 watts (220 mins @ 20 watts,
45 mins @ 75 watts)
16-20 hours @ 240v ac
(Optional international voltages available)
12 months consumer use
(Globes excluded)

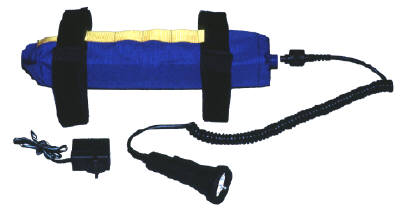

Complete Kit M525L
Lite head & cable (Opt. coiled)
Battery pack
Battery bag & straps
Instructions
Charger
Automotive and 4WD
